Zebra Z-Select 4000D 3.2 mil Direct Thermal Receipt Paper

Zebra LD-R4KN5B is Z-Select 4000D white, smooth direct thermal receipt paper supplied in 4-inch-wide x 81.25-foot rolls, with 36 rolls per case. The material provides excellent print quality for packing lists, general-purpose ticketing and work-in-process tagging.

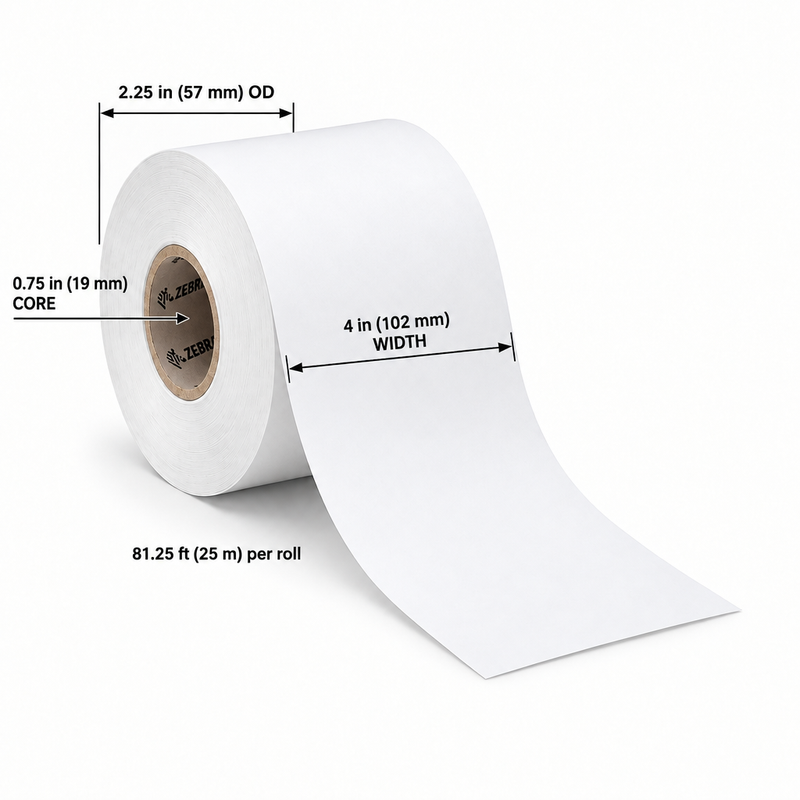

Roll and material specifications

• Part number: LD-R4KN5B
• Material family: Zebra Z-Select 4000D 3.2 mil Receipt
• Print method: Direct thermal
• Paper: White, smooth direct thermal paper
• Total caliper: 3.2 mil, ±10%
• Roll width: 4 in.
• Roll length: 81.25 ft per roll
• Core size: 0.75 in.
• Outer diameter: 2.25 in.
• Packaging: 36 rolls per case; sold by the case
• Service temperature: -40°F to 140°F (-40°C to 60°C)
• Optimal storage conditions: 72°F (22°C) at 50% relative humidity
• Outdoor use: Not recommended

Applications

Use this material for indoor packing lists, general-purpose tickets and work-in-process tags where direct thermal printing fits your workflow. Match the roll dimensions to your printer before ordering; the material family alone does not establish printer compatibility.

Up to 25-year image legibility under archival conditions

Zebra specifies that images can remain legible for up to 25 years when properly formed and when receipts are handled and stored under the required conditions. Protect archival receipts from light, heat, water, solvents, cleaners, plasticizers and oils, including vegetable and skin oils. Store with compatible materials below 77°F at 45–65% relative humidity. Image durability depends on the energy used during printing. This is a conditional archival claim, not an unconditional service-life guarantee.

Printer fit and application testing

Confirm that your printer accepts 4-inch-wide media, a 0.75-inch core, a 2.25-inch roll outer diameter and 3.2 mil paper. Verify appropriate print settings for this exact material with Zebra or your printer documentation. Pre-test the paper against your intended end-use requirements.

Exposure limitations

The material sheet marks alcohol, ammonia, bleach, IPA, gasoline, grease, oil, acetone, IR reflow, MEK, TCE and xylene as not recommended. Do not treat the paper as suitable for outdoor exposure or as waterproof.

Frequently asked questions

What is Zebra LD-R4KN5B?
It is Z-Select 4000D continuous direct thermal receipt paper, supplied as 36 rolls per case. Each roll is 4 inches wide and 81.25 feet long.

Is this die-cut label stock?
No. This listing is for continuous receipt paper, not die-cut labels.

What service temperatures does the material support?
The material sheet specifies -40°F to 140°F (-40°C to 60°C). Archival storage has separate, more restrictive requirements.

Can printed images last 25 years?
Up to 25-year legibility requires proper printing, protected handling and storage with compatible materials below 77°F at 45–65% relative humidity.

Can this paper be used outdoors?
Zebra does not recommend this material for outdoor use.

Will these rolls fit any receipt printer?
No. Check your printer's media width, core size, maximum roll diameter and supported thickness before purchasing.
