Zebra Z-Perform 1000D 4 x 2 Direct Thermal Labels

Zebra LD-R2AQ5J is Z-Perform 1000D direct thermal paper label stock, supplied as 36 rolls per case with 300 labels per roll. Each label measures 4 inches wide by 2 inches long. Use these labels for indoor shipping, receiving, product identification and work-in-process workflows, subject to application testing and printer fit.

SKU and roll specifications

• Part number: LD-R2AQ5J
• Label width: 4 in.
• Label length: 2 in.
• Core diameter: 0.75 in.
• Roll outer diameter: 2.5 in.
• Labels per roll: 300
• Rolls per case: 36
• Total labels per case: 10,800
• Perforated: Yes
• Sensing: Sense mark, per the existing SKU configuration
• Print method: Direct thermal; no ribbon required
• Unit of sale: Case

Material-family construction

The supplied 2025 Z-Perform 1000D material sheet describes RM 65832RM: uncoated direct thermal paper with permanent acrylic adhesive. The sheet describes a phenol-free Vitamin C developer that gives the material an orange tone. It does not list LD-R2AQ5J specifically; confirm that this SKU is supplied in that formulation before relying on its color or phenol-free designation.

• Facestock thickness: 2.1 mil
• Adhesive: Permanent acrylic, 0.8 mil
• Liner: 40 lb semi-bleached kraft stock, 2.4 mil
• Total material thickness: 5.3 mil, ±10%
• Environment: Indoor use
• Expected life in application: 1 year indoors, per the material sheet
• Recommended storage: 72°F (22°C) at 50% relative humidity

Temperature performance and application testing

The material specification table lists a service temperature range of -65°F to 200°F (-54°C to 93°C) following correct application and appropriate dwell time, usually 24 hours. This is not the temperature range for initial application.

Minimum application temperature needs confirmation: the sheet's introduction states -4°F (-20°C), while its specification table states 38°F (3°C). Confirm the applicable minimum with Zebra before cold-surface application.

Printer compatibility

Use a direct thermal printer that accepts 4-inch-wide labels, a 0.75-inch core, a 2.5-inch roll outer diameter and the specified material thickness and sensing format. A general material-family printer recommendation does not guarantee that this roll fits every printer. Verify media fit and settings before ordering.

Chemical exposure guidance

The material sheet requires end-use testing for blood, body fluids, salt water, water, alcohol, ammonia, bleach and IPA. Window cleaner, gasoline, grease, acetone, IR reflow, MEK, TCE and xylene are not recommended. Do not treat this as waterproof or chemical-proof label stock. Pre-test adhesion and print durability in your intended application.

Frequently asked questions

What size are LD-R2AQ5J labels?

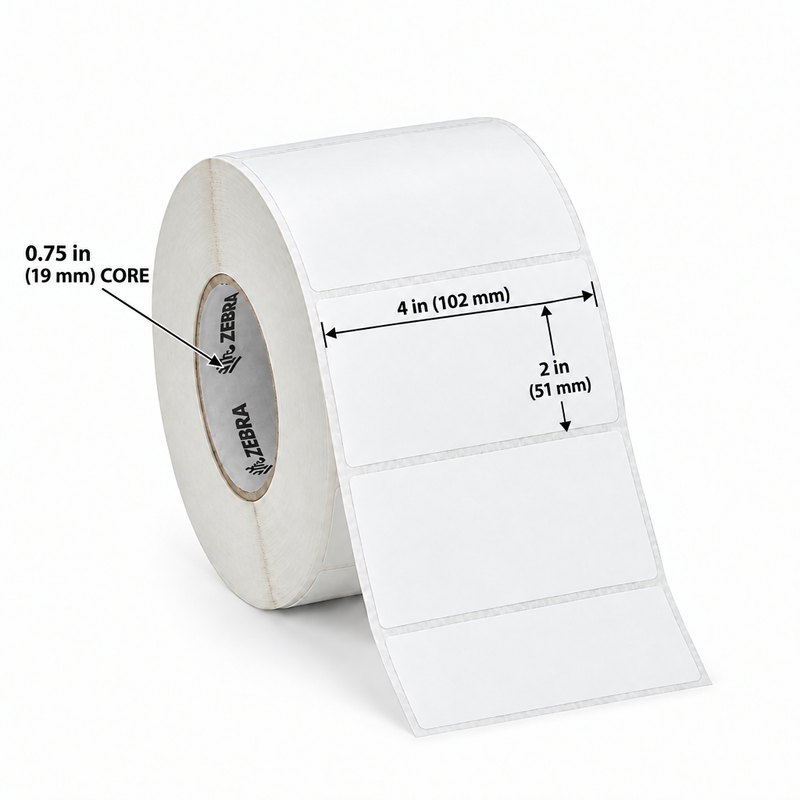

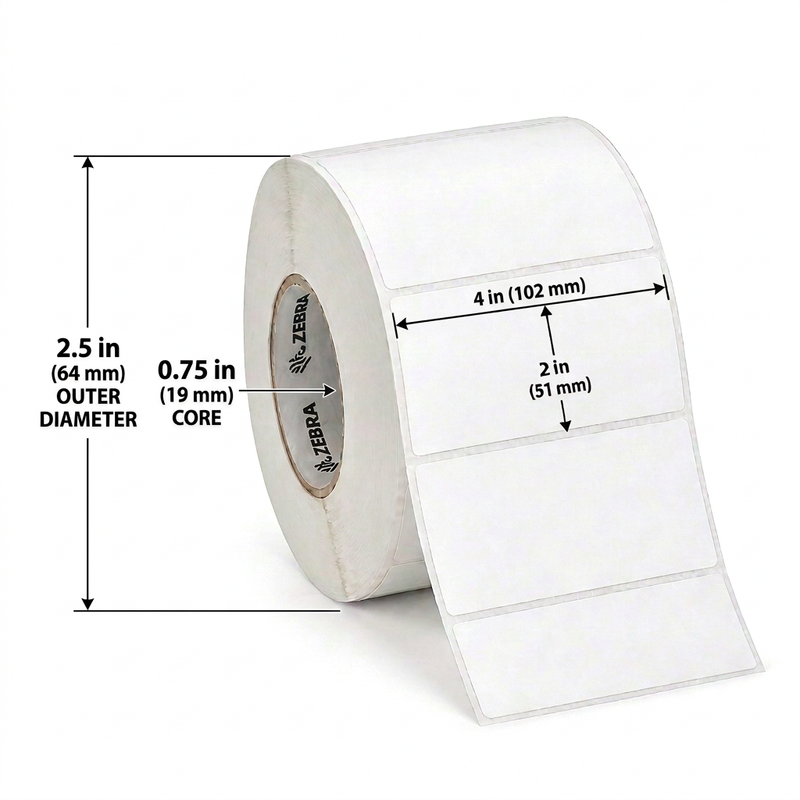

Each label face is 4 inches wide by 2 inches long. The wound roll has a 2.5-inch outer diameter and a 0.75-inch core.

How many labels are in a case?
There are 300 labels per roll and 36 rolls per case, totaling 10,800 labels.

Do these labels need a ribbon?
No. They use direct thermal printing, so a thermal transfer ribbon is not required.

Are they perforated?
Yes. The existing SKU configuration specifies perforated stock with a sense mark.

Can I use these for shipping?
Shipping and receiving are listed Z-Perform 1000D applications. Confirm adhesion, exposure conditions and printer compatibility for your workflow.

Are the labels white or orange-toned?
The supplied 2025 material sheet describes an orange-toned Vitamin C formulation. Confirm the formulation supplied under LD-R2AQ5J before relying on color; white reference imagery does not establish the supplied material's color.
