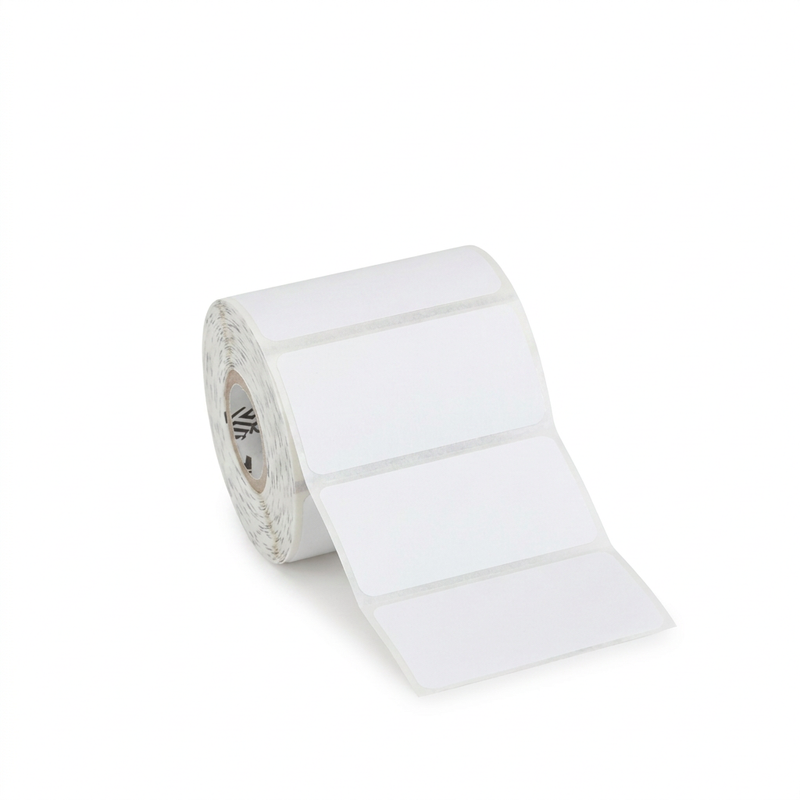

Zebra LD-R7MU5P Z-Perform 1000D labels provide a 2" x 1" direct thermal format for indoor identification and labeling workflows. Direct thermal printing requires no ribbon, simplifying routine roll changes. This listing is sold as a case of 36 rolls, with 350 labels per roll.

SKU specifications

• Part number: LD-R7MU5P
• Media series: Z-Perform 1000D
• Print method: Direct thermal; no ribbon required
• Label width: 2" (50.8 mm)
• Label length: 1" (25.4 mm)
• Core diameter: 0.75" (19.05 mm)
• Outer diameter: 2" (50.8 mm)
• Labels per roll: 350
• Rolls per case: 36
• Perforated: No

Material-family guidance

Zebra's supplied 2025 Z-Perform 1000D sheet describes material 65832RM: uncoated direct thermal paper with permanent acrylic adhesive. It specifies 2.1 mil facestock, 0.8 mil adhesive and a 2.4 mil, 40 lb. semi-bleached kraft liner, for a total thickness of 5.3 mil (±10%).

Material revision note: That sheet describes a phenol-free, Vitamin C-developed material with an orange tone. It does not identify LD-R7MU5P or establish which material revision is supplied under this part number. Confirm the current stock formulation and appearance before ordering if phenol-free construction, color or thickness is critical. The material sheet does not independently verify this SKU's roll dimensions, packaging or perforation; those details retain the existing listing specifications.

Temperature, storage and use

• Environment: Indoor use
• Application temperature: The specification table lists a minimum of 38°F (3°C) for both surface and environment. The introductory text instead states -4°F (-20°C); obtain confirmation before cold-surface application.
• Service temperature: -65°F to 200°F (-54°C to 93°C), following correct application and appropriate dwell time, usually 24 hours
• Recommended storage: 72°F (22°C) at 50% relative humidity
• Expected application life: The sheet lists one year indoors for the documented material; this is not a guarantee of print readability in every environment.

Service temperatures are not application or storage temperatures. Test the actual stock on your intended surface under real operating conditions before production use.

Applications and printer fit

The material family is intended for indoor shipping and receiving, product identification, work-in-process and retail price-markdown labeling. Choose a direct thermal printer that accepts the 2" label width, 0.75" core and 2" roll diameter. Check the exact printer's media thickness and sensing requirements; a family-level printer recommendation does not establish compatibility with every Zebra model.

The sheet calls for application testing with water, blood, body fluid, salt water, alcohol, ammonia, bleach and IPA. It does not recommend window cleaner, gasoline, grease, acetone, IR reflow, MEK, TCE or xylene exposure. Do not treat this paper label as a chemical-resistant or outdoor label.

Frequently asked questions

Does LD-R7MU5P require a ribbon?

No. This is a direct thermal label format, so printing does not require a thermal transfer ribbon.

What quantity is included?

One case contains 36 rolls, with 350 labels per roll.

Will these labels fit my mobile printer?

Confirm that your exact printer supports 2" wide labels, a 0.75" core, a 2" outer diameter and the supplied stock's thickness and sensing requirements.

Are these labels perforated?

The existing SKU specification states no perforation. Gaps between individual die-cut labels are not the same as perforations.

Is this SKU confirmed to use the new orange-toned, phenol-free material?

The supplied family sheet describes that formulation but does not link it to LD-R7MU5P. Confirm the material revision of the stock being supplied if this is an ordering requirement.

Can I apply these labels below freezing?

Do not rely on the sheet's introductory cold-application statement without clarification: its specification table lists a higher minimum application temperature of 38°F (3°C). Confirm the requirement for your actual stock and test your application.
