Zebra 800274-605 Z-Select 4000T labels combine a 4" x 6" format with ultra-smooth, white topcoated paper and permanent acrylic adhesive. Designed for thermal transfer printing, they provide space for shipping information, packaging identification and barcode layouts in indoor warehouse, retail and manufacturing workflows.

Each case contains 12 rolls of 475 labels, totaling 5,700 labels. A compatible thermal transfer ribbon is required and sold separately.

Product specifications

• Manufacturer: Zebra
• Part number: 800274-605
• Secondary reference: TT4060-5
• Series: Z-Select 4000T
• Print method: Thermal transfer
• Label width: 4" (101.6 mm)
• Label length: 6" (152.4 mm)
• Material: White, smooth topcoated paper
• Adhesive: Permanent acrylic-based adhesive
• Core diameter: 1" (25.4 mm)
• Roll outer diameter: 5" (127 mm)
• Labels per roll: 475
• Rolls per case: 12
• Labels per case: 5,700
• Perforated: Yes
• Ribbon: Required; sold separately

Material construction

The Z-Select 4000T material combines a 2.7 mil white topcoated paper facestock, a 0.5 mil permanent acrylic adhesive layer and a 2.5 mil, 40 lb. semi-bleached kraft liner. Total construction thickness is 5.7 mil ±10%. Its ultra-smooth surface supports high-quality thermal transfer printing, including high-speed applications, with a suitable ribbon and printer setup.

Applications

Use these 4" x 6" labels for packaging identification, product identification, shipping layouts, work-in-process tracking and compliance-label workflows. Match the label layout to your software and application requirements. The paper construction is intended for indoor use and is not recommended for outdoor exposure.

Temperature and storage

• Minimum application temperature: 30°F (-1°C)
• Service temperature range: -65°F to 200°F (-54°C to 93°C)
• Optimal storage: 72°F (22°C) at 50% relative humidity

Application temperature refers to conditions when attaching the label; the service range describes exposure after application. It is not a cold-surface application rating. Pre-test the label and ribbon combination on your intended surface under actual operating conditions.

Printer and ribbon selection

Select a thermal transfer printer that supports the media width, 1" core, 5" roll diameter and material thickness. A printer's print width alone does not establish roll compatibility. Use a compatible wax or wax/resin ribbon matched to your printer's ribbon dimensions, winding and application requirements. Zebra's material sheet evaluates the 2000, 6000 and 6100 ribbon families; select the appropriate available ribbon configuration for your exact printer.

Exposure guidance

Test print readability and adhesion for the intended end use. The material sheet lists alcohol, ammonia, bleach, IPA, gasoline, grease, oil, acetone, MEK, TCE and xylene as not recommended exposures with its evaluated ribbon combinations. Do not treat these paper labels as solvent-resistant or outdoor-rated media.

Frequently asked questions

Does Zebra 800274-605 require a ribbon?

Yes. These are thermal transfer labels and require a compatible ribbon, sold separately. They are not direct thermal labels.

How many labels are supplied?

Each roll contains 475 labels. A case contains 12 rolls, for a total of 5,700 labels.

What are the label and roll dimensions?

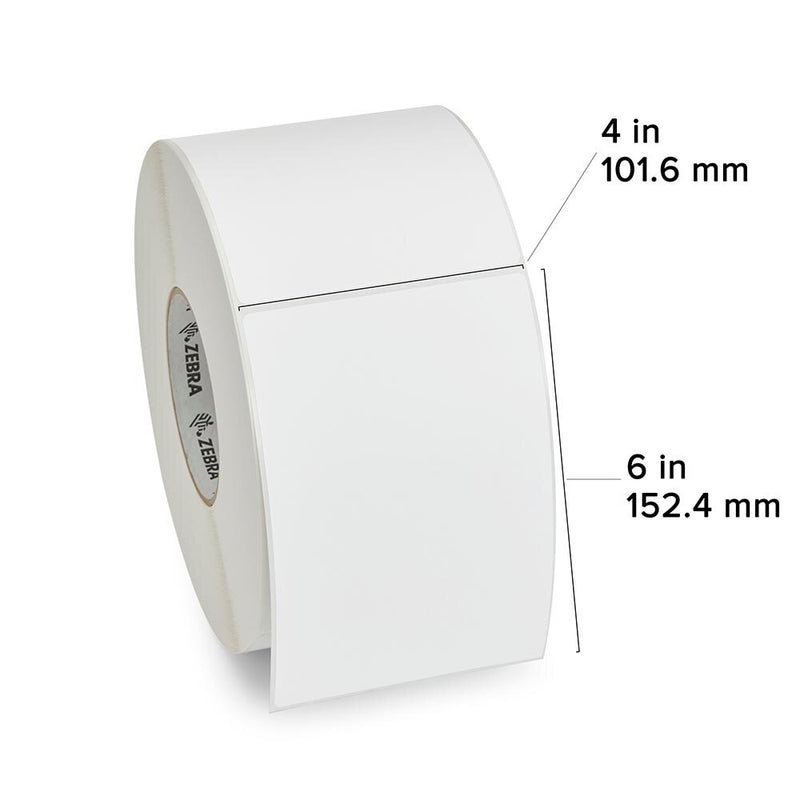

Each label measures 4" wide by 6" long. Rolls have a 1" core and a 5" outer diameter.

Are the labels perforated?

Yes. Zebra 800274-605 is supplied as perforated label stock.

Will these fit any 4-inch Zebra printer?

Your printer must support thermal transfer printing, the media width, a 1" core and a 5" roll diameter. Check the exact model's media and ribbon requirements.

Can these labels be used outdoors?

No. Z-Select 4000T paper is not recommended for outdoor use. Choose outdoor-rated media for exterior exposure.

Can labels be applied at the lowest service temperature?

No. The minimum application temperature is 30°F (-1°C). The lower service-temperature rating is not an application temperature.
