Zebra 10015343 Z-Select 4000D 2.25" x 4" Direct Thermal Labels, 12 Rolls/Case
Part 10015343
Zebra 10015343 Z-Select 4000D labels are 2.25" x 4" white direct thermal paper labels for product identification, logistics and general indoor labeling. Smooth coated paper prints without a ribbon, while permanent all-temperature acrylic adhesive supports everyday labeling tasks. Perforations allow easy separation during application.
Sold by the case: 12 rolls containing 700 labels each, totaling 8,400 labels. Each roll has a 1" core and a 5" outer diameter. Check printer fit and your required label layout before ordering.
Product specifications
- Brand: Zebra
- Part number: 10015343
- Secondary part number: DT2240-5
- Series: Z-Select 4000D
- Print method: Direct thermal; no ribbon required

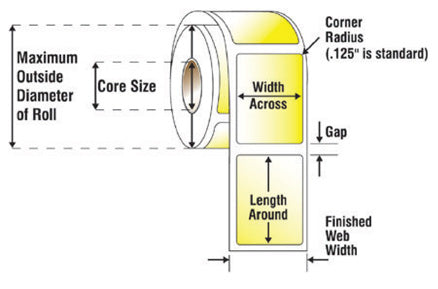

- Label width: 2.25" (57.15 mm)
- Label length: 4" (101.6 mm)
- Material: White smooth coated direct thermal paper
- Adhesive: Permanent all-temperature acrylic-based adhesive
- Core diameter: 1" (25.4 mm)
- Roll outer diameter: 5" (127 mm)
- Labels per roll: 700
- Rolls per case: 12
- Labels per case: 8,400
- Perforated: Yes
Coated paper construction and printing
Z-Select 4000D combines a 3.2 mil coated direct thermal paper facestock, a 0.8 mil adhesive layer and a 2.3 mil, 40 lb. semi-bleached kraft liner. Total construction thickness is 6.3 mil ±10%. Zebra specifies good print quality at speeds up to 10 inches per second for this material; actual operating speed depends on printer capability, settings and label design.
Applications and format selection
Use this narrow, tall format for product identifiers, inventory barcodes, work-in-process tracking and logistics information. For parcel shipping or compliance layouts, verify that the required text, barcode dimensions and label format fit the 2.25" x 4" area. It is not a substitute for a required 4" x 6" shipping label.
Printer fit
Select a direct thermal printer that accepts the media width, 1" core, 5" roll diameter and material thickness. Check the exact model's sensing and media-handling requirements. A printer's nominal print width alone does not establish roll compatibility. No thermal transfer ribbon is required. Contact us for help checking fit before ordering.
Temperature and storage
- Minimum application temperature: -20°F (-29°C)
- Service temperature: -65°F to 140°F (-54°C to 60°C)
- Optimal storage: 72°F (22°C) at 50% relative humidity
Application temperature describes conditions when attaching the label. Service temperature describes exposure after application, not the permitted initial application temperature. Pre-test adhesion and print readability on the intended surface under actual operating conditions.
Exposure limitations
This paper material has limited moisture and abrasion resistance and is not recommended for outdoor use. Window cleaner, alcohol, ammonia, bleach, IPA, gasoline, grease, oil, acetone, MEK, TCE and xylene are not recommended exposures. Choose media designed for tougher conditions when solvent resistance, heavy abrasion or outdoor durability is required.
Frequently asked questions
What size are Zebra 10015343 labels?
Each label measures 2.25" wide by 4" long (57.15 x 101.6 mm).
How many labels come in a case?
Each case contains 12 rolls of 700 labels, totaling 8,400 labels.
Do these labels require a ribbon?
No. Z-Select 4000D is direct thermal paper and prints using heat without a thermal transfer ribbon.
Are these labels perforated?
Yes. Perforations make labels easy to separate during application.
Will these rolls fit my printer?
Your printer must support direct thermal printing and accept the media width, 1" core, 5" outer diameter and material thickness. Verify sensing and handling requirements for the exact model.
Can I use them for any shipping label?
Use them only when your carrier or shipping workflow accepts the 2.25" x 4" format and the required barcode and text fit correctly. They are not 4" x 6" labels.
What print speed is supported?
Zebra specifies good print quality up to 10 inches per second for Z-Select 4000D material. Your printer, settings and label design may require a lower speed.
Can these labels be applied at -65°F?
No. The minimum application temperature is -20°F (-29°C). The -65°F lower service limit describes exposure after application.
Are these waterproof or suitable outdoors?
No. The material has limited moisture and abrasion resistance and is not recommended for outdoor use.
How should unused rolls be stored?
Optimal storage conditions are 72°F (22°C) at 50% relative humidity.
| Manufacturer | Zebra |
