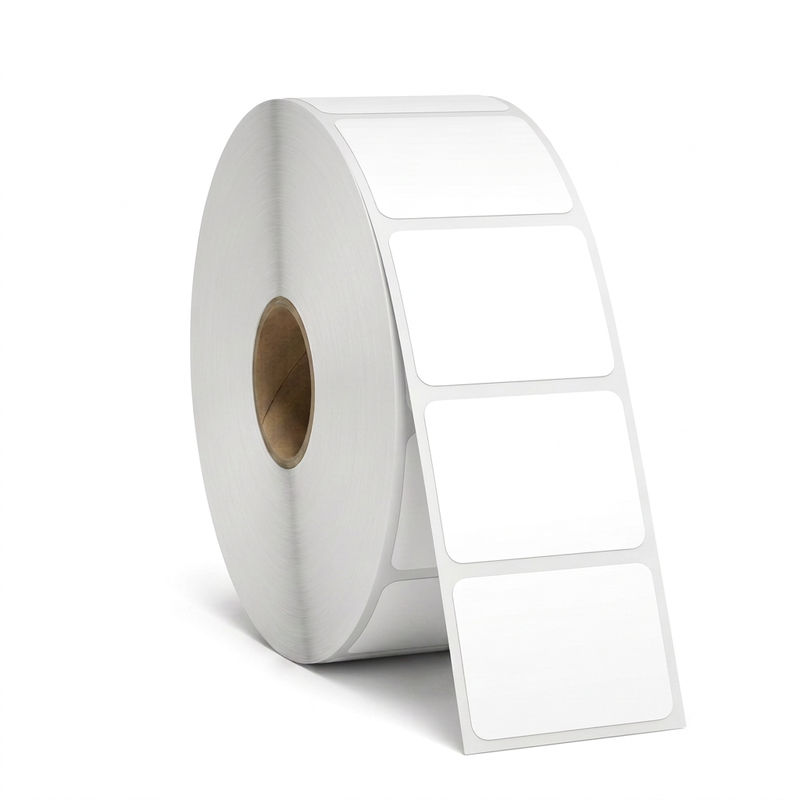

Zebra 10009523 Z-Select 4000T labels are premium white thermal transfer paper labels for compact indoor product identification, packaging and inventory labeling. Each 1.25" wide x 1" long label combines an ultra-smooth, topcoated paper surface for high-quality barcode and text printing with permanent acrylic adhesive. Supplied as a case of 6 perforated rolls with 2,580 labels per roll. A compatible thermal transfer ribbon is required and sold separately.

Compact labels for small identification spaces

The small rectangular format suits product identification and inventory labeling where space is limited. Z-Select 4000T material supports excellent high-speed print quality for packaging materials, product identification and work-in-process labeling. Perforations allow easy separation between labels.

Label and roll specifications

• Brand: Zebra
• Part number: 10009523
• Media series: Z-Select 4000T
• Print method: Thermal transfer; ribbon required
• Label width x length: 1.25" x 1" (approximately 32 x 25 mm)
• Material: White, smooth, topcoated paper
• Adhesive: Permanent acrylic
• Core diameter: 1"
• Roll outer diameter: 5"
• Perforated: Yes
• Labels per roll: 2,580
• Rolls per case: 6
• Total labels per case: 15,480

Temperature, storage and use conditions

• Minimum application temperature: 30°F (-1°C)
• Service temperature range: -65°F to 200°F (-54°C to 93°C)
• Optimal storage conditions: 72°F (22°C) at 50% relative humidity
• Outdoor use: Not recommended

The service temperature range is not the application temperature range. Apply labels at or above the minimum application temperature. Test the label, ribbon and surface combination under your intended end-use conditions before production use. For laboratory labeling, evaluate the specific container, cleaning agents and handling conditions; a temperature range alone does not establish laboratory-process suitability.

Printer and ribbon fit

Use a thermal transfer printer that supports the 1.25" label width, 1" label length, 1" core and 5" roll outer diameter. Check the printer's minimum media width and label length as well as roll capacity. Brand alone does not establish compatibility. These are not direct thermal labels and require a compatible thermal transfer ribbon.

Frequently asked questions

How many labels are included?
Each case contains 6 rolls of 2,580 labels, totaling 15,480 labels.

Which dimension is the width?
Each label is 1.25" wide across the roll and 1" long in the feed direction.

Is a ribbon included?
No. A compatible thermal transfer ribbon is required and sold separately.

Can these labels be used outdoors?
No. Z-Select 4000T paper material is not recommended for outdoor labeling.

How do I check printer compatibility?
Confirm thermal transfer support and the supported label width, label length, core diameter and roll outer diameter against your printer specifications. Contact us with your printer model for help checking fit.

Priced per case of 6 rolls. Ribbon sold separately.
