Honeywell PM45 300 DPI Touch Thermal Transfer Printer | PM45A10000000301

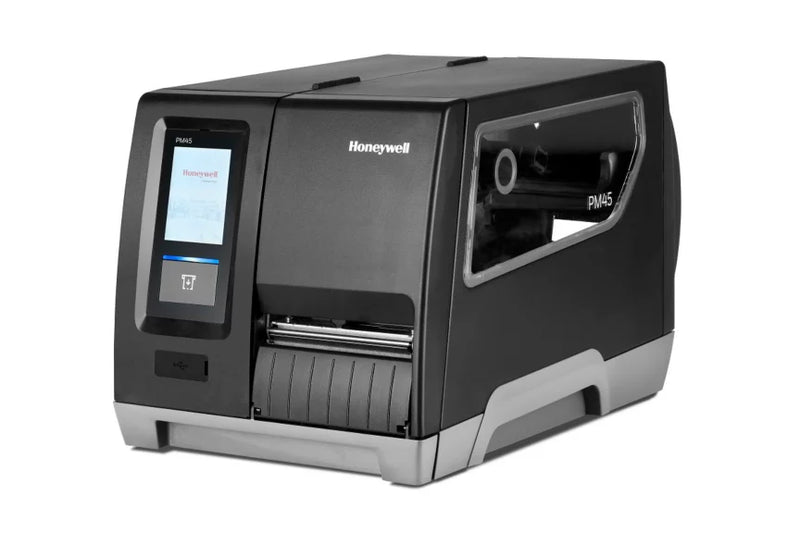

The Honeywell PM45A10000000301 is a 300 DPI thermal transfer industrial barcode label printer with a touch display for manufacturing, warehouse and distribution workflows. This 4-inch-class configuration includes Ethernet and USB connectivity, a standard roller and a US power cord. Its 300 DPI resolution supports detailed text, barcodes and graphics, with print speeds up to 12 inches per second.

Detailed label output for industrial workflows

• 300 DPI printing: Produce barcode labels, text and graphics at 11.8 dots/mm, with support for major 1D and 2D barcode symbologies.
• Touch interface: Access printer controls through the touch display on this configuration.
• Production speed: Print at 2–12 inches per second at 300 DPI.
• High-capacity supplies: Accommodates label rolls up to 8.38 inches in outside diameter and ribbons up to 450 meters long to help reduce supply changes.
• Service-friendly construction: An all-metal print mechanism, easy printhead replacement and tool-free platen roller replacement help simplify maintenance.

PM45A10000000301 configuration and specifications

• Brand and model: Honeywell PM45
• Part number: PM45A10000000301
• Print method: Thermal transfer
• Resolution: 300 DPI (11.8 dots/mm)
• Label width class: 4 inches
• Maximum print width: 105.7 mm (4.17 in) at 300 DPI
• Print speed: 50–300 mm/s (2–12 ips)
• Maximum print length: 2.2 m at 300 DPI
• Display: Touch display
• Configured connectivity: Ethernet and USB
• Roller: Standard roller
• Power cord: US power cord
• Memory: 512 MB flash and 256 MB SDRAM
• Printer dimensions, L × H × W: 483 × 295 × 284 mm (19.0 × 11.6 × 11.2 in)
• Printer weight: 12.1 kg (26.7 lb)
• Power input: 100–240V AC, 50–60 Hz

Compatible labels and ribbons

Use thermal transfer labels or tags with a ribbon formulation matched to the media and application. The PM45 accepts roll-fed or fan-fold media and supports gap, notch, black-mark and continuous media sensing.

• Media width: 19–114 mm (0.75–4.5 in)
• Media thickness: 2.4–10.4 mil
• Minimum media length: 6.4 mm (0.25 in) in tear-off and rewinder modes
• Maximum label roll outside diameter: 213 mm (8.38 in)
• Label roll core inside diameter: 38–76 mm (1.5–3 in)
• Ribbon types: Wax, wax/resin and resin
• Ribbon winding: Ink-in or ink-out
• Ribbon width: 21.6–110 mm (0.85–4.33 in)
• Ribbon core inside diameter: 25.4 mm (1 in)
• Maximum ribbon outside diameter: 80 mm (3.15 in)
• Maximum ribbon length: 450 m (1,476 ft)

Integration and operating conditions

PrintSet 5 and the printer's web interface support configuration and management. The PM45 family supports Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL-II) and DPL printer languages. Match the firmware and language to your label software and existing workflow.

For thermal transfer printing, operate at 5–40°C (40–104°F) and 20–85% relative humidity, non-condensing. Storage conditions are -20–70°C (-4–152°F) and 5–90% relative humidity, non-condensing.

Frequently asked questions

Is this the 300 DPI touchscreen PM45?

Yes. Part number PM45A10000000301 specifies 300 DPI thermal transfer printing, a touch display, Ethernet, USB, a standard roller and a US power cord.

What is the maximum print width?

At 300 DPI, maximum print width is 105.7 mm (4.17 in). The 4-inch label width class is distinct from the maximum media width of 114 mm (4.5 in). Check both the printed layout and the total media width when choosing labels.

Does this configuration include Wi-Fi or RFID?

This listing specifies Ethernet and USB. Wireless connectivity and RFID are separate configuration options and are not listed as included with this part number.

Which supplies should I order?

Match the label material and ribbon formulation to your application, then check media width, core size and outside diameter against the limits above. Label roll cores and ribbon cores have different requirements.

Choose Honeywell PM45A10000000301 for this 300 DPI touch-display configuration, or contact us for help matching labels, ribbons and your print workflow before ordering.
