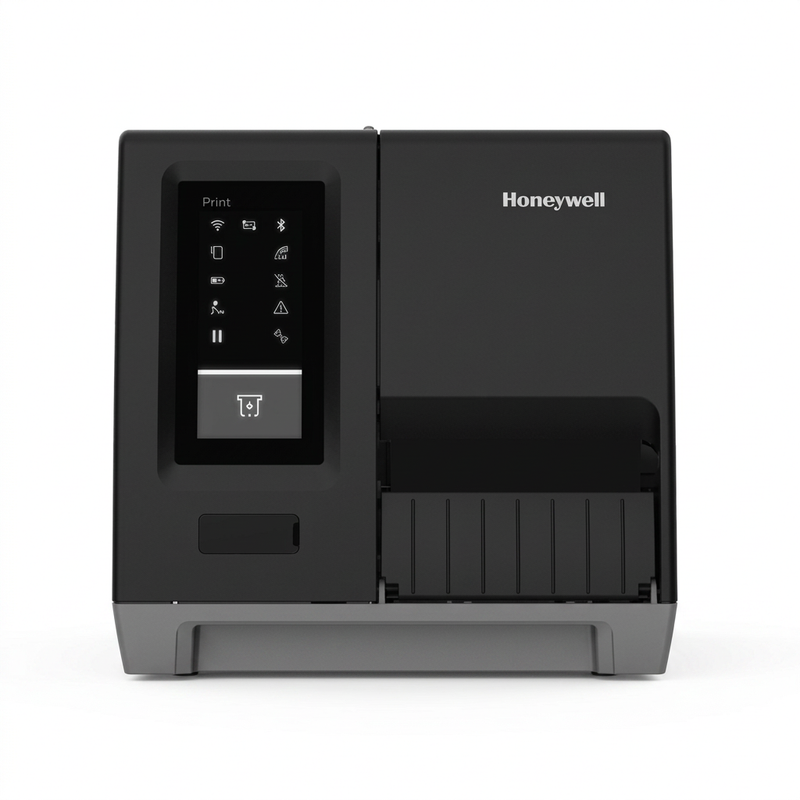

Honeywell PM45 203 DPI Thermal Transfer Printer | PM45A00000000201

The Honeywell PM45A00000000201 is a 203 DPI thermal transfer industrial barcode label printer for manufacturing, warehouse and distribution workflows. This 4-inch-class configuration includes an icon display, Ethernet and USB connectivity, a standard roller and a US power cord. Print speeds up to 14 inches per second help support high-volume label production.

Built for industrial labeling workflows

• Clear barcode output: 203 DPI resolution for barcode, text and graphic printing, with support for major 1D and 2D barcode symbologies.
• High-volume media capacity: Accommodates label rolls up to 8.38 inches in diameter and thermal transfer ribbons up to 450 meters long, helping reduce supply changes.
• Service-friendly construction: An all-metal print mechanism, easy printhead replacement and tool-free platen roller replacement help simplify maintenance.
• Wired integration: Ethernet and USB connectivity support deployment in existing business printing environments.

Specifications for PM45A00000000201

• Brand and model: Honeywell PM45
• Part number: PM45A00000000201
• Print method: Thermal transfer
• Resolution: 203 DPI (8 dots/mm)
• Label width class: 4 inches
• Maximum print width: 108 mm (4.25 in) at 203 DPI
• Print speed: 50–350 mm/s (2–14 ips)
• Maximum print length: 4.8 m (189 in) at 203 DPI
• Display: Icon display
• Configured connectivity: Ethernet and USB
• Roller: Standard roller
• Power cord: US power cord
• Memory: 512 MB flash and 256 MB SDRAM
• Printer dimensions: 483 × 295 × 284 mm (19.0 × 11.6 × 11.2 in), L × H × W
• Printer weight: 12.1 kg (26.7 lb)
• Power input: 100–240V AC, 50–60 Hz

Label and ribbon compatibility

Use thermal transfer labels or tags with a ribbon matched to the media surface and application. The PM45 supports roll-fed or fan-fold media, including gap, notch, black-mark and continuous sensing.

• Media width: 19–114 mm (0.75–4.5 in)
• Media thickness: 2.4–10.4 mil
• Minimum media length: 6.4 mm (0.25 in) in tear-off and rewinder modes
• Maximum label roll outside diameter: 213 mm (8.38 in)
• Label roll core inside diameter: 38–76 mm (1.5–3 in)
• Ribbon types: Wax, wax/resin and resin; ink-in or ink-out
• Ribbon width: 21.6–110 mm (0.85–4.33 in)
• Ribbon core inside diameter: 25.4 mm (1 in)
• Maximum ribbon roll: 80 mm (3.15 in) outside diameter; 450 m (1,476 ft) length

Setup and operating conditions

Printer configuration tools include PrintSet 5 and a web interface. The PM45 family supports Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL-II) and DPL printer languages; select the appropriate firmware and language for your workflow.

For thermal transfer printing, operate at 5–40°C (40–104°F) and 20–85% relative humidity, non-condensing. Storage temperature is -20–70°C (-4–152°F), with 5–90% relative humidity, non-condensing.

Buyer questions

Is this the 203 DPI PM45?

Yes. Part number PM45A00000000201 is the 203 DPI thermal transfer configuration with an icon display, Ethernet, USB, standard roller and US power cord.

Does this configuration include wireless connectivity or RFID?

This listing specifies Ethernet and USB. Wireless connectivity, RFID and specialized interface or media-handling options are not included in the listed configuration. Contact us to select a configuration for those requirements.

Which label rolls and ribbons should I order?

Match the label material and ribbon formulation to your application, then check media width, core size and roll diameter against the limits above. The 4-inch label width class is distinct from the printer's 4.25-inch maximum print width and 4.5-inch maximum media width.

Order Honeywell PM45A00000000201 for this configuration, or contact us for help matching labels, ribbons and your printing workflow before purchase.
